Reciprocal Lattices (CONTINUACION)
Aim: To become familiar with the concept of the reciprocal lattice. It is very important and frequently used in the rest of the course to develop models and describe the physical properties of solids.
First we treat an alternative description of a lattice is in terms of a set of parallel identical planes. They are defined so that every lattice point belongs to one of these planes. The lattice can actually be described with an infinite number of such sets of planes. This description may seem artificial but we will see later that it is a natural way to interpret diffraction experiments in order to characterize the crystal structure. The figure below shows a 2-D lattice with three different sets of 1-D "planes" drawn.
The orientation of a plane can be specified by three integers, the so called Miller indices. The intercepts of one plane with the coordinate axes (the translation vectors of the lattice) are determined and normalized by division by the corresponding lattice constants. Then the reciprocals are taken and reduced to the set of smallest integers. In the figure above, the Miller indices for the three sets of "planes" are given as an example. Note also that the planes in the sets with lower Miller indices are spaced further apart (shaded areas depict the interplanar spacing). The Miller indices of a single plane or a set of planes are denoted (ijk). All planes with the same symmetry are denoted {ijk}. A direction in a crystal is denoted [uvw] and all equivalent directions (same symmetry) are . In cubic crystals [ijk] is orthogonal to (ijk).
Real lattices and reciprocal lattices
Lattices are periodic structures and position-dependent physical properties that depend on the structural arrangement of the atoms are also periodic. For example the electron density in a solid is a function of position vector r, and its periodicity can be expressed as ρ(r+T)=ρ(r), where T is a translation vector of the lattice. The periodicity means that the lattice and physical properties associated with it can be Fourier transformed. Since space is three dimensional, the Fourier analysis transforms it to a three-dimensional reciprocal space. Physical properties are commonly described not as a function of r, but instead as a function of wave vector ("spatial frequency" or k-vector) k. This is analogous to the familiar Fourier transformation of a time-dependent function into a dependence on (temporal) frequency. The lattice structure of real space implies that there is a lattice structure, the reciprocal lattice, also in the reciprocal space.
Reciprocal lattice vectors

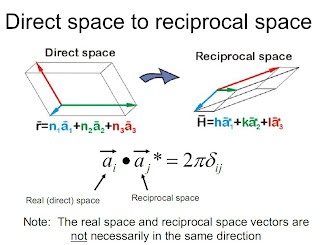

The reciprocal lattice points are described by the reciprocal lattice vectors, starting from the origin G = m´ b1 + n´ b2 + o´ b3, where the coefficients are integers and the bi are the primitive translation vectors of the reciprocal lattice. From the definition of the bi, it can be shown that exp (iGT) = 1. This condition is actually taken as the starting point by Hoffman; it is required by the condition that the Fourier series must have the periodicity of the lattice. Hence, theFourier series of a function with the periodicity of the lattice can only contain the lattice vectors (spatial frequencies) G.
Since the Miller indices of sets of parallel lattice planes in real space are integers, we can interpret the coefficients (m´n´o´) as Miller indices (ijk). This leads to a physical relation between sets of planes in real space and reciprocal lattice vectors. Hence we write G = i b1 + j b2 + k b3. The reciprocal lattice vectors are labelled with Miller indices Gijk. Each point in reciprocal space comes from a set of crystal planes in real space (with some exceptions, for example (n00), (nn0) and (nnn) with n>1 in cubic systems; nevertheless they occur in the Fourier series and are necessary for a correct physical description). Consider the (ijk) plane closest to the origin. It cuts the coordinate axes in a1/i, a2/j and a3/k. A triangular section of the plane has these points in the corners. The sides of the triangle are given by the vectors (a1/i) - (a2/j) and analogously for the other two sides. Now the scalar product of Gijk with any of these sides is easily seen to be zero. Hence the vector Gijk is directed normal to the (ijk) planes. The distance between two lattice planes is given by the projection of for example a1/i onto the unit vector normal to the planes, i.e. dijk = (a1/i)•nijk, where dijk is the interplanar distance between two (ijk)-planes. The unit normal is just Gíjk divided by its length. Hence the magnitude of the reciprocal lattice vector is given by 2π/ dijk.
ORLANING COLMENARES
ELECTRONICA DEL ESTADO SOLIDO
Visitar mi BLOG:
BIBLIOGRAFIA:
Get news, entertainment and everything you care about at Live.com. Check it out!
... Un poco de HISTORIA (Invariancia traslacional)
Ernesto Medina Dagger
Durante los siglos XIX y XX se le dio un gran impulso a la Física cuando se empezó a pensar en términos de simetrías. Una simetría se expresa matemáticamente como una invariancia (ausencia de cambios) bajo una operación como la de traslación espacial, temporal o, por ejemplo, una rotación. Si tomamos la figura de un cuadrado y la rotamos alrededor de su centro en 90 grados no podemos distinguir la orientación final de la original, el cuadrado es entonces invariante bajo una rotación de 90 grados. En la Física, las operaciones mencionadas dan origen respectivamente a la ley de conservación de energía (invariancia temporal), la ley de conservación de momentum (invariancia traslacional) y la de conservación de momento angular (invariancia rotacional). La presencia de todas estas invariancias juntas resulta en un mundo que no cambia en el tiempo, que es igual en todos los puntos del espacio y en todas las direcciones. Sin embargo, el mundo se pone interesante cuando ocurre el rompimiento de algunas de estas simetrías, lo cual da lugar a la formación de patrones o formas que varían de múltiples maneras en el espacio y el tiempo, lo que reconocemos intuitivamente como "orden" en la naturaleza. Los rompimientos de simetría dan lugar a muchos fenómenos con que convivimos, como la formación de cristales, los populares imanes o magnetos y la misma estructura que observamos del universo hoy en día. Sin el rompimiento de simetría no existirían los electrones, protones y neutrones que componen los átomos y por lo tanto los átomos mismos. No existiría la vida.
Un fenómeno supremamente importante, asociado al rompimiento de la simetría, es el surgimiento, paradójico, de una simetría exótica, la asociada a la invariancia de escalas. Formas y objetos que vemos a una escala de magnificación particular, se repiten a cualquier otra magnificación por encima o por debajo de la primera dando origen a patrones que son construidos en base a sí mismos. Esto es lo que conocemos como fractales y son las estructuras más ricas y bellas al ojo humano que ofrece la naturaleza.
Un fenómeno supremamente importante, asociado al rompimiento de la simetría, es el surgimiento, paradójico, de una simetría exótica, la asociada a la invariancia de escalas. Formas y objetos que vemos a una escala de magnificación particular, se repiten a cualquier otra magnificación por encima o por debajo de la primera dando origen a patrones que son construidos en base a sí mismos. Esto es lo que conocemos como fractales y son las estructuras más ricas y bellas al ojo humano que ofrece la naturaleza.
El estudio de simetrías y su rompimiento está hoy en el corazón de todos los campos de la física: la teoría de campos, la cosmología, la física de partículas, la física del estado sólido y fenómenos críticos.
ORLANING COLMENARES
ELECTRONICA DEL ESTADO SOLIDO
Visitar mi BLOG:
Get news, entertainment and everything you care about at Live.com. Check it out!
Bravais Lattices (CONTINUACION)
Bravais lattices are the underlying structure of a crystal. A 3D Bravais lattice is defined by the set of vectors R
where the vectors a1 are the basis vectors of the Bravais lattice. (Do not confuse with a lattice with a basis.) Every point of a Bravais lattice is equivalent to every other point. In an elemental crystal, it is possible that the elemental ions are located at the vertices of a Bravais lattice. In general, a crystal structure will be a Bravais lattice with a basis. The symmetry group of a Bravais lattice is the group of translations through thelattice vectors together with some discrete rotation group about (any) one of thelattice points. In the problem set (Ashcroft and Mermin, problem 7.6) you will showthat this rotation group can only have 2-fold, 3-fold, 4-fold, and 6-fold rotation axes. There are 5 different types of Bravais lattice in 2D: square, rectangular, hexago-nal, oblique, and body-centered rectangular. There are 14 di erent types of Bravaislattices in 3D. The 3D Bravais lattices are discussed in are described in Ashcroft andMermin, chapter 7 (pp. 115-119). We will content ourselves with listing the Bravaislattices and discussing some important examples.
Bravais lattices can be grouped according to their symmetries. All but one canbe obtained by deforming the cubic lattices to lower the symmetry.
*Cubic symmetry: cubic, FCC, BCC.
*Tetragonal: stretched in one direction, a x a x c; tetragonal, centered tetragonal.
*Orthorhombic: sides of 3 di erent lengths a x b x c, at right angles to eachother; orthorhombic, base-centered, face-centered, body-centered.
*Monoclinic: One face is a parallelogram, the other two are rectangular; mono-clinic, centered monoclinic.
*Triclinic: All faces are parallelograms.
*Trigonal: Each face is an a x a rhombus.
*Hexagonal: 2D hexagonal lattices of side a, stacked directly above one another,with spacing c.
Examples:
*Simple cubic lattice: ai = a xi.
*Body-centered cubic (BCC) lattice: points of a cubic lattice, together with thecenters of the cubes = interpenetrating cubic lattices o set by 1/2 the body-diagonal.
Examples: Ba, Li, Na, Fe, K, Tl
*Face-centered cubic (FCC) lattice: points of a cubic lattice, together with the centers of the sides of the cubes, = interpenetrating cubic lattices o set by 1/2 a face-diagonal.
Examples: Al, Au, Cu, Pb, Pt, Ca, Ce, Ar.
*Hexagonal Lattice: Parallel planes of triangular lattices
Bravais lattices can be broken up into unit cells such that all of space can be recovered by translating a unit cell through all possible lattice vectors. A primitive unit cell is a unit cell of minimal volume. There are many possible choices of primitive unit cells. Given a basis, a1;a2;a3, a simple choice of unit cell is the region:
The volume of this primitive unit cell and, thus, any primitive unit cell is:
An alternate, symmetrical choice is the Wigner-Seitz cell: the set of all pointswhich are closer to the origin than to any other point of the lattice. Examples: Wigner-Seitz for square=square, hexagonal=hexagon (not parallelogram), oblique=distortedhexagon, BCC=octohedron with each vertex cut o to give an extra square face (A+Mp.74).
ORLANING COLMENARES
ELECTRONICA DEL ESTADO SOLIDO
Visitar mi BLOG:
BIBLIOGRAFIA:
Discover the new Windows Vista Learn more!
Crystal momentum
In solid-state physics crystal momentum or quasimomentum is a momentum-like vector associated with electrons in a crystal lattice. It is defined by the associated wave vectors k of this lattice, according to
Pcristal = h.K
(where h is the reduced Planck's constant). Like regular momentum, crystal momentum frequently exhibits the property of being conserved, and is thus extraordinarily useful to physicists and materials scientists as an analytical tool.
Lattice symmetry origins
A common method of modeling crystal structure and behavior is to view electrons as quantum mechanical particles traveling through a fixed infinite periodic potential V(x) such that
V(x+a) = V(x)
where a is an arbitrary lattice vector. Such a model is sensible because (a) crystal ions that actually form the lattice structure are typically on the order of tens of thousands of times more massive than than electrons, making it safe to replace them with a fixed potential structure, and (b) the macroscopic dimensions of a crystal are typically far greater than a single lattice spacing, making edge effects negligible. A consequence of this potential energy function is that it is possible to shift the initial position of an electron by any lattice vector a without changing any aspect of the problem, thereby defining a discrete symmetry. (Speaking more technically, an infinite periodic potential implies that the lattice translation operator T(a) commutes with the Hamiltonian, assuming a simple kinetic-plus-potential form.)
These conditions imply Bloch's theorem, which states in terms of equations that
These conditions imply Bloch's theorem, which states in terms of equations that
or in terms of words that an electron in a lattice, which can be modeled as a single particle wave function ψ(x), finds its stationary state solutions in the form of a plane wave multiplied by a periodic function u(x). The theorem arises as a direct consequence of the aforementioned fact that the lattice symmetry translation operator commutes with the system's Hamiltonian.
One of the notable aspects of Bloch's theorem is that it shows directly that steady state solutions may be identified with a wave vector k, meaning that this quantum number remains a constant of motion. Crystal momentum is then conventionally defined by multiplying this wave vector by Planck's constant:
One of the notable aspects of Bloch's theorem is that it shows directly that steady state solutions may be identified with a wave vector k, meaning that this quantum number remains a constant of motion. Crystal momentum is then conventionally defined by multiplying this wave vector by Planck's constant:
Pcristal = h.K
While this is in fact identical to the definition one might give for regular momentum (for example, by treating the effects of the translation operator by the effects of a particle in free space), there are important theoretical differences. For example, while regular momentum is completely conserved, crystal momentum is only conserved to within a lattice vector, i.e., an electron can be described not only by the wave vector k, but also with any other wave vector k' such that
k* = k + K
where K is an arbitrary reciprocal lattice vector. This is a consequence of the fact that the lattice symmetry is discrete as opposed to continuous, and thus its associated conservation law cannot be derived using Noether's theorem.
It is tempting to treat a phonon with wave vector as though it has a momentum, by analogy to photons and matter waves. This is not entirely correct, for is not actually a physical momentum; it is called the crystal momentum or pseudomomentum. This is because is only determined up to multiples of constant vectors, known as reciprocal lattice vectors. For example, in our one-dimensional model, the normal coordinates and are defined so that
It is usually convenient to consider phonon wave vectors which have the smallest magnitude in their "family". The set of all such wave vectors defines the first Brillouin zone. Additional Brillouin zones may be defined as copies of the first zone, shifted by some reciprocal lattice vector.
It is interesting that similar consideration is needed in analog-to-digital conversion where aliasing may occur under certain conditions.
It is interesting that similar consideration is needed in analog-to-digital conversion where aliasing may occur under certain conditions.
ORLANING COLMENARES
ELECTRONICA DEL ESTADO SOLIDO
Visitar mi BLOG:
BIBLIOGRAFIA:
Invite your mail contacts to join your friends list with Windows Live Spaces. It's easy! Try it!
Brillouin zone
In mathematics and solid state physics, the first Brillouin zone is a uniquely defined primitive cell in reciprocal space. The boundaries of this cell are given by planes related to points on the reciprocal lattice. It is found by the same method as for the Wigner–Seitz cell in the Bravais lattice. The importance of the Brillouin zone stems from the Bloch wave description of waves in a periodic medium, in which it is found that the solutions can be completely characterized by their behavior in a single Brillouin zone.

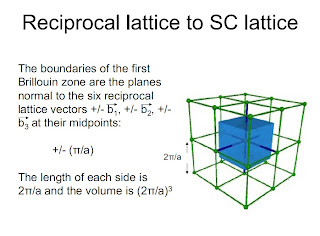

Taking surfaces at the same distance from one element of the lattice and its neighbours, the volume included is the first Brillouin zone. Another definition is as the set of points in k-space that can be reached from the origin without crossing any Bragg plane. Equivalently, this is the Voronoi cell around the origin of the reciprocal lattice.

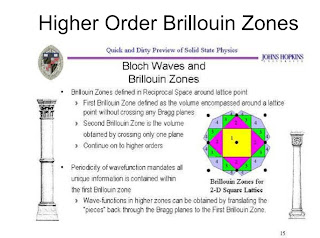

There are also second, third, etc., Brillouin zones, corresponding to a sequence of disjoint regions (all with the same volume) at increasing distances from the origin, but these are used more rarely. As a result, the first Brillouin zone is often called simply the Brillouin zone. (In general, the n-th Brillouin zone consists of the set of points that can be reached from the origin by crossing exactly n − 1 distinct Bragg planes.)
